6 Key Aspects of Designing Vaccine Cold Rooms

Linble
March 28, 2025

Vaccine cold rooms are critical infrastructures in the healthcare and pharmaceutical industries, ensuring that vaccines remain effective and stable from production to administration. These cold storage facilities must maintain strict temperature control, typically between 2°C and 8°C for most vaccines, while some require ultra-low temperatures.

Proper design considerations, including temperature regulation systems, insulation, and storage configurations, are essential to ensure vaccine efficacy and prevent spoilage.

This article explores the 6 key aspects of designing vaccine cold rooms for optimal storage and temperature control.

1. Temperature Regulation Systems

Maintaining a stable and reliable temperature in vaccine cold rooms is paramount. Several factors influence the choice of temperature regulation systems:

a. Refrigeration Units

Cold rooms utilize commercial-grade refrigeration units equipped with precise temperature controls. The type of refrigeration system depends on the vaccine storage requirements:

Compressor-Based Refrigeration: Most common for maintaining temperatures between 2°C and 8°C.
Ultra-Low Temperature (ULT) Freezers: Required for vaccines like mRNA-based COVID-19 vaccines, which may need storage at -70°C.
Absorption Refrigeration: Suitable for locations with unreliable electricity since it can operate using gas or kerosene.

b. Temperature Monitoring and Alarms

A dependable monitoring system maintains vaccines within the necessary temperature range. These systems include:

Digital Data Loggers (DDL): Continuously record temperature and send alerts in case of fluctuations.
Remote Monitoring Systems: Implement IoT and cloud-based technology for real-time temperature monitoring.
Backup Alarms: Audible and visual alerts trigger if temperatures deviate from the set range.

c. Backup Power and Redundancy

To prevent temperature fluctuations during power outages, vaccine cold rooms must have:

Uninterruptible power supply (UPS) or battery backup
Diesel or solar-powered generators
Dual refrigeration units for redundancy

2. Insulation for Temperature Stability

Proper insulation minimizes heat exchange between the cold room and external environments, ensuring stable temperature conditions.

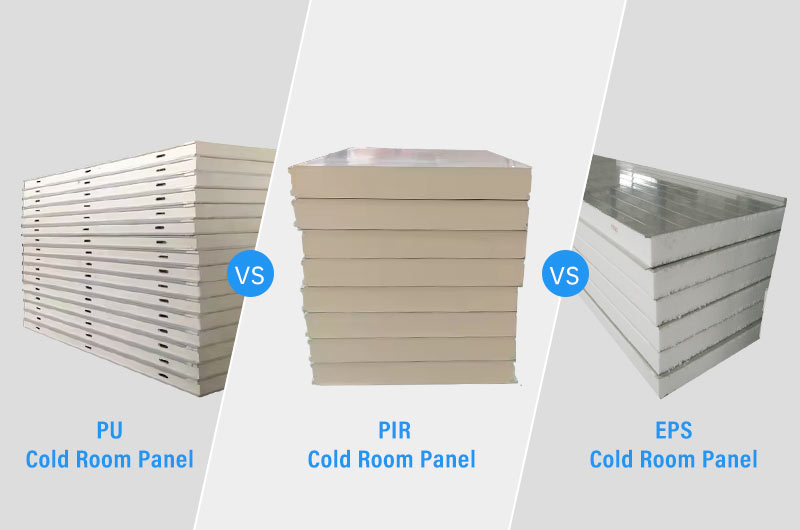

a. Insulation Materials

High-quality insulation materials help reduce energy consumption while maintaining temperature consistency. The most common materials for cold room panels include:

Polyurethane Foam (PUF): Provides excellent thermal resistance and is commonly used in cold room walls and ceilings.
Expanded Polystyrene (EPS) Panels: Lightweight and cost-effective but less efficient than PUF.
Polyisocyanurate (PIR): Offers superior insulation but at a higher cost.

b. Insulated Doors and Seals

Cold room doors must be airtight and insulated to prevent heat infiltration. Important features include:

Self-closing mechanisms to prevent accidental temperature exposure.
Gasket seals around the door frame to prevent air leaks.
Heated door frames (for ultra-low temperature storage) to avoid condensation and ice buildup.

c. Flooring and Thermal Barriers

Cold room flooring should be designed to minimize heat transfer from below. Recommended solutions include:

Insulated flooring panels to prevent cold loss.
Utilize vapor barriers to prevent moisture infiltration and frost formation.

3. Storage Configurations for Vaccine Organization

Proper storage layout optimizes space utilization, enhances airflow, and ensures easy access to vaccines.

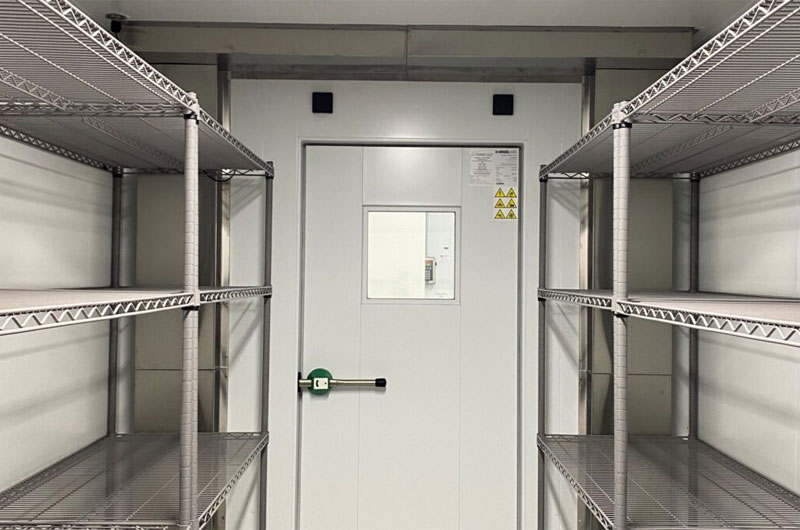

a. Shelving and Racking Systems

The design of shelving impacts vaccine safety and accessibility.

Adjustable Stainless Steel Shelves: Resistant to corrosion and easy to clean.
Perforated or Wire Racks: Ensure proper air circulation around stored vaccines.
Load Distribution Considerations: Prevents overloading and ensures even cooling.

b. Storage Bins and Containers

Vaccines must be stored in designated, labeled bins to avoid mix-ups and contamination.

Thermal Containers: Provide extra protection against temperature fluctuations.
Color-Coded Bins: Differentiate between vaccine types and reduce handling errors.

c. Airflow and Ventilation

Proper airflow prevents cold spots and ensures uniform cooling. Design considerations include:

Strategic placement of air vents to promote even air distribution.
Space between racks for free circulation of cooled air.
Ceiling or wall-mounted fans to enhance airflow.

4. Humidity and Contamination Control

Humidity levels in vaccine cold rooms must be kept below 60% to prevent condensation, mold growth, and vaccine degradation.

a. Humidity Control Systems

Dehumidifiers: Extract excess moisture to maintain optimal conditions.
Hygrometers: Monitor humidity levels and trigger alerts if needed.

b. Air Filtration and Cleanliness

High-Efficiency Particulate Air (HEPA) Filters: Remove contaminants from circulating air.
Regular Disinfection Protocols: Prevent microbial contamination.

5. Location and Environmental Considerations

The placement of a vaccine cold room affects its efficiency and energy consumption.

a. Site Selection

Away from Direct Sunlight and Heat Sources: Reduces cooling load.
Proper Drainage System: Prevents water buildup and related safety risks.
Structural Support for Load Capacity: Ensures the floor can bear the weight of stored vaccines and equipment.

b. Energy Efficiency Measures

LED Lighting: Generates minimal heat and saves energy.
Solar Panels (for Off-Grid Locations): Provide sustainable power supply.
Energy-Efficient Refrigeration Units: Reduce operational costs.

6. Compliance with Regulatory Standards

Vaccine cold rooms must meet international standards to guarantee safety and effectiveness.

a. WHO and CDC Guidelines

WHO PQS (Performance, Quality, and Safety) Standards for cold chain equipment.
CDC Vaccine Storage and Handling Toolkit for best practices in vaccine management.
