Cold Room Design and Layout: A Complete Guide

Cold Room Design & Layout

In food processing, pharmaceuticals, floriculture, and many other industries, cold rooms are essential for preserving perishable items and maintaining product quality. An efficiently designed cold room can save energy, reduce spoilage, and streamline operations.

Whether you’re planning to build a new cold storage facility or upgrade an existing one, understanding the fundamentals of cold room design and layout is key to optimizing performance.

1. Importance of Proper Cold Room Design

A well-designed cold room ensures:

  • Temperature uniformity
  • Energy efficiency
  • Safe and hygienic storage
  • Maximum use of space
  • Regulatory compliance

Improper design can lead to frequent breakdowns, high energy costs, or product spoilage.

2. Key Considerations in Cold Room Design

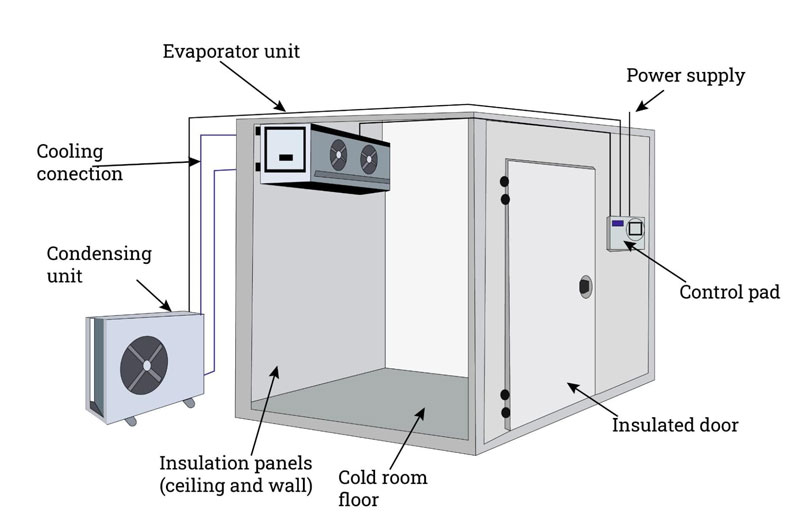

Cold Room Design

A. Purpose and Temperature Requirements

Before designing the layout, define the purpose of the cold room:

  • What will be stored?
  • What is the desired storage temperature?
  • What is the average load per day?
  • How long will the goods be stored?

Each product has specific temperature and humidity needs. For example, fruits may require high humidity, while pharmaceutical products need strict temperature stability.

B. Size and Capacity Planning

Estimate the storage capacity based on the volume and type of products. Factors include:

  • Daily throughput
  • Maximum inventory during peak season
  • Type of packaging (boxes, pallets, crates)
  • Storage duration

Also, consider future scalability to accommodate business growth.

C. Location and Orientation

Choosing the right location helps improve energy efficiency and accessibility:

  • Select a shaded area or one protected from direct sunlight
  • Ensure proximity to processing or loading areas
  • Avoid low-lying areas prone to water accumulation
  • Plan for vehicle access for easy loading/unloading

D. Thermal Insulation

Insulation is critical to maintain temperature and reduce energy consumption. Common insulation materials:

  • PU Panels
  • PIR Panels
  • EPS Panels

Cold room panel thickness varies:

  • 80–100 mm for chiller rooms
  • 100–150 mm for freezer rooms
  • 150–200 mm for blast freezers

Proper panel joint sealing and vapor barriers are essential to prevent condensation and thermal leakage.

3. Cold Room Layout

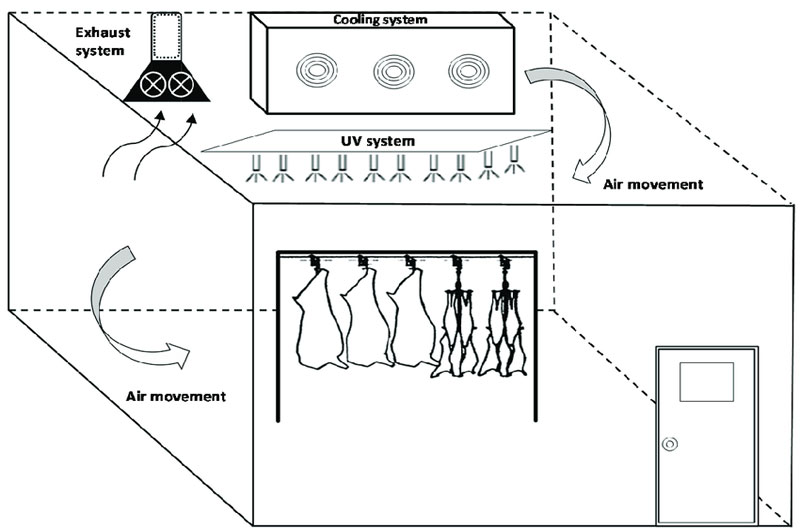

Cold Room Layout

The layout affects storage efficiency, workflow, and energy consumption. Below are crucial layout components:

A. Zoning and Space Allocation

Divide the cold room into functional zones:

  • Receiving Area: For inspecting and staging goods before storage
  • Storage Area: Main area with shelving or pallet racks
  • Picking Area: For order preparation or consolidation
  • Loading/Unloading Bay: Often equipped with dock levelers and air curtains

Ensure proper aisle widths:

  • 1–1.5 meters for manual handling
  • 2.5–3 meters for forklift operations

Avoid overstacking to maintain airflow around products.

B. Racking and Shelving Systems

Choose storage systems based on goods type and accessibility needs:

  • Adjustable Pallet Racking: Versatile, suitable for bulk storage
  • Mobile Racking: Maximizes space in compact rooms
  • Drive-In Racking: Ideal for high-volume, low-variety goods
  • Cantilever Shelving: For oddly shaped or long items

Ensure racking is corrosion-resistant and designed for low temperatures.

C. Flooring Design

Cold room flooring must be:

  • Insulated to prevent heat ingress
  • Durable and load-bearing
  • Non-slip and easy to clean

Common materials include:

  • Insulated concrete with epoxy or polyurethane finish
  • Stainless steel floor panels (in high-hygiene applications)

D. Doors and Access Points

Cold room doors should be:

  • Insulated and equipped with effective gaskets
  • Self-closing or automated to minimize open time
  • Fitted with air curtains or plastic strip curtains to prevent cold loss

Sliding doors or hinged doors are commonly used in cold rooms depending on space availability.

4. Mechanical and Electrical Components

A. Refrigeration System

The refrigeration system maintains the desired temperature and consists of:

  • Compressor
  • Evaporator
  • Condenser
  • Expansion Valve

System types:

  • Centralized: For large facilities, offers better efficiency
  • Split Systems: Common for small-to-medium rooms

Refrigerant choice (e.g., R404a, R134a, or natural refrigerants) depends on environmental regulations and cooling requirements.

B. Ventilation and Defrosting

Cold rooms must manage air circulation and defrost cycles to prevent ice build-up. Use:

  • Air circulation fans
  • Periodic defrost cycles (hot gas or electric)
  • Humidity control units for sensitive goods

C. Lighting

Use LED lights suited for low temperatures. Lights should be IP-rated (e.g., IP65) and provide adequate brightness without producing excess heat.

D. Monitoring and Alarm Systems

Modern cold rooms include temperature and humidity sensors with remote monitoring. Alerts for:

  • Door left open
  • Temperature deviations
  • Power failure
  • Refrigeration malfunctions

Optional integration with Building Management Systems (BMS) or cloud-based platforms is available.

5. Safety and Compliance

Cold rooms must comply with safety and food/pharma regulations:

  • Emergency Exit Buttons inside to prevent lock-ins
  • Anti-slip Flooring
  • Fire-rated Panels if required
  • Compliance with local food safety laws (e.g., HACCP, GMP)

Routine maintenance schedules and temperature logs are often mandatory.

6. Energy Efficiency Tips

  • Use high-quality insulation
  • Opt for energy-efficient compressors and fans
  • Install automatic door closures
  • Schedule defrosting cycles smartly
  • Monitor and optimize power consumption via control systems
