Evaporators are essential components in any cold room, playing a critical role in maintaining the desired temperature by absorbing heat and enabling the refrigeration cycle.
Cold room evaporators can be installed in three primary configurations: ceiling-mounted, wall-mounted, and floor-mounted.
So, which evaporator type is best for your cold room? Let’s break down the differences and ideal use cases for each to help you make an informed decision.
1. Ceiling-Mounted Evaporators
Ceiling-mounted evaporators are installed at the top of the cold room, typically hanging from the ceiling in a central or corner location. These are the most commonly used evaporators in commercial cold rooms.
Advantages
- Efficient Air Circulation: Being positioned at the top allows for better distribution of cold air throughout the room, utilizing natural convection.
- Space Saving: Since they are mounted above, they free up more space for storage and movement.
- Safety and Accessibility: Items stored in the cold room are less likely to obstruct airflow, ensuring consistent temperature control.
- Less Prone to Mechanical Damage: Ceiling-mounted units are out of reach from daily operations and potential collisions.
Best Applications
- Medium to large cold rooms used for storing fruits, vegetables, dairy products, or general frozen items.
- Facilities where maximizing storage space is critical.
- Situations requiring uniform cooling across all areas.
Limitations
- More complex and costly installation, especially in rooms with low ceilings.
- Maintenance might require ladders or lifts, making it slightly less accessible.
2. Wall-Mounted Evaporators
Wall-mounted evaporators are installed on the upper portion of a cold room wall, typically a bit lower than ceiling units but still elevated. These are ideal for small to medium cold rooms or where ceiling mounting is impractical.
Advantages
- Easier Maintenance Access: Compared to ceiling units, wall-mounted evaporators are more accessible for maintenance and cleaning.
- Targeted Airflow: Can be oriented to direct airflow to specific zones or across shelving rows.
- Simpler Installation: Requires less structural support than ceiling-mounted units.
Best Applications
- Small cold rooms, walk-in refrigerators, or prep kitchens.
- Retail environments where space is tight and frequent maintenance is expected.
- Locations where low ceilings prevent ceiling-mounted installation.
Limitations
- Can reduce usable wall space for shelving or storage.
- Risk of airflow obstruction if stored items are placed too close to the unit.
- May cause uneven temperature distribution in larger cold rooms.

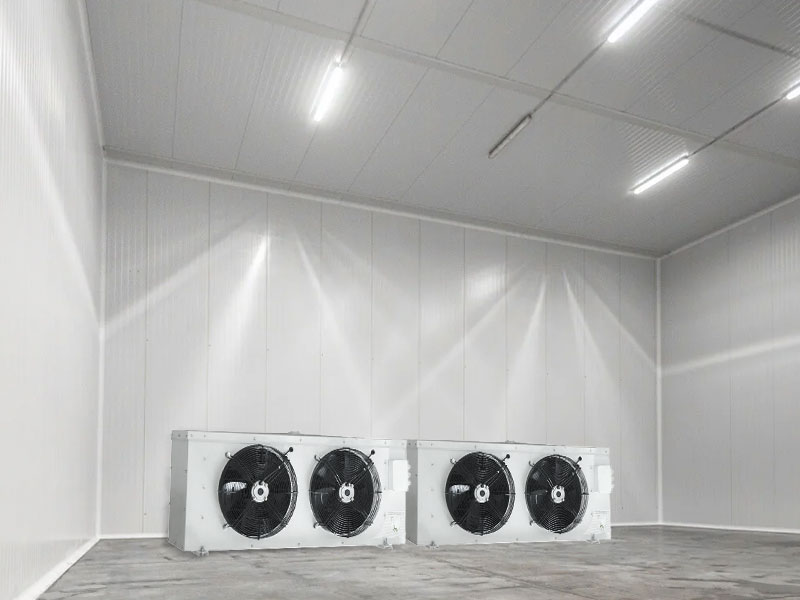

3. Floor-Mounted Evaporators
Floor-mounted evaporators are installed at ground level and are often larger in size. These are typically used in specialized environments, particularly in ultra-low-temperature rooms like blast freezers or meat cold storage.
Advantages
- Powerful Cooling: Designed for heavy-duty, low-temperature applications with high-capacity airflow.
- Even Air Distribution at Low Levels: Suitable for dense storage environments or rooms with tall shelving where ceiling airflow may not reach effectively.
- Ideal for Sub-Zero Storage: Handles frost load better and often incorporates defrost heaters for smooth operation.
Best Applications
- Blast freezers, meat processing facilities, or frozen fish storage.
- Industrial cold rooms with high humidity and constant door opening.
- Rooms where ceiling or wall space is occupied or obstructed.
Limitations
- Consumes valuable floor space, limiting room layout and storage flexibility.
- More prone to damage from forklifts, trolleys, or foot traffic.
- May require floor drainage and protection barriers due to condensation and defrost cycles.
Comparison Chart
| Feature | Ceiling-Mounted | Wall-Mounted | Floor-Mounted |
|---|---|---|---|
| Space Utilization | Excellent | Moderate | Poor |
| Air Distribution | Very Good | Good | Moderate |
| Maintenance Access | Moderate | Easy | Easy |
| Installation Cost | Moderate to High | Low to Moderate | High |
| Cooling Power | Moderate to High | Moderate | High |
| Ideal Room Size | Medium to Large | Small to Medium | Large or Specialized |
| Risk of Damage | Low | Moderate | High |
Factors to Consider When Choosing an Evaporator Type
When selecting the right evaporator type for your cold room, consider the following factors:
1. Room Size and Layout
- Large, open areas with tall ceilings benefit more from ceiling-mounted units.
- Compact or irregularly shaped rooms may better suit wall-mounted evaporators.
- Floor-mounted units are ideal where vertical space is limited or for extremely cold environments.
2. Temperature Requirements
- For regular refrigeration (0°C to +5°C), ceiling or wall units suffice.
- For freezing applications (below -18°C), especially with frequent door openings, floor-mounted evaporators may perform better.
3. Product Sensitivity
- Products sensitive to airflow or drying (like fresh produce) may require indirect or controlled airflow—consider ceiling or wall units with adjustable louvers.
4. Hygiene and Maintenance
- Facilities with strict hygiene standards (like pharmaceutical or meat storage) may prefer ceiling units that are out of the way.
- For ease of cleaning and inspection, wall or floor units offer better accessibility.
5. Traffic and Equipment Use
- If the cold room involves frequent movement of forklifts or pallet jacks, avoid floor-mounted units unless properly protected.
Conclusion: Which One Is the Best?
There is no one-size-fits-all answer. The best evaporator type for a cold room depends entirely on your application needs.
- Ceiling-mounted evaporators are generally the best all-round choice for medium to large cold rooms with typical refrigeration needs, offering great air distribution and space efficiency.
- Wall-mounted evaporators are ideal for small spaces where ease of maintenance and targeted cooling are important.
- Floor-mounted evaporators are the go-to for ultra-low-temperature applications or industrial cold storage where power is prioritized over space.
Carefully evaluate your cold room’s size, purpose, temperature range, and workflow. Consulting with a refrigeration engineer or HVAC expert can also help determine the most suitable evaporator type based on your facility’s unique requirements.
